SPECIFICATIONS

U.S.

Metric

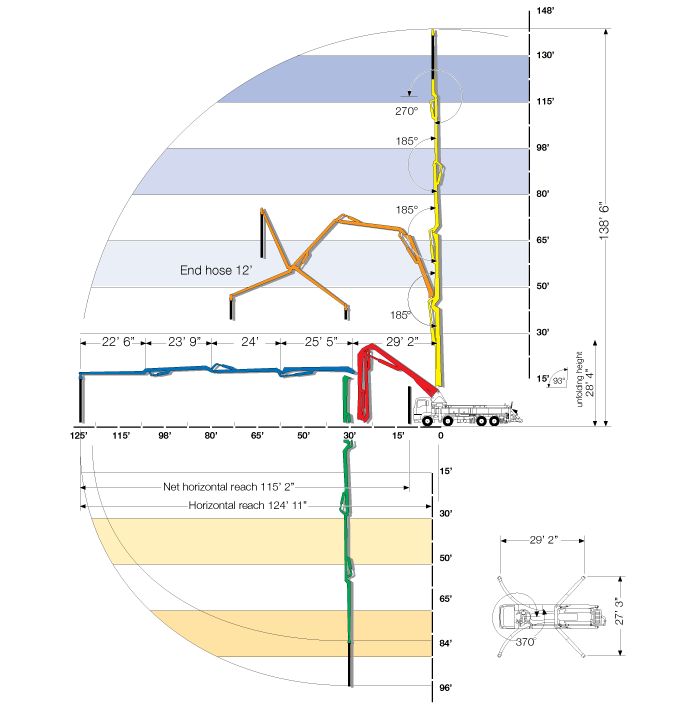

Vertical Reach 138′ 6″ 42.3 m
Horizontal Reach 124′ 11″ 38.1 m
Below Grade Reach w/ Tip Hose 96 ft 29.3 m
Pipeline Diameter 5 in 125 mm
Boom Type/ Sections RZ5 Roll & Fold®/ 5
Boom Rotation 730 degrees
Unfolding Height 28′ 4″ 8.5 m
Outrigger Type- Front Super X, Hydraulic Slewing & Jacking
Outrigger Type- Rear Hydraulic Slewing & Jacking
Outrigger Soil Pressure w/o Dunnage (front/rear) 339/311 psi 23.4/21.4 bar
Outrigger Soil Pressure w/ Dunnage (front/rear) 96/88 psi 6.8/6.1 bar
Outrigger Width, Front 27′ 3″ 8.3 m
Outrigger Width, Rear 27′ 3″ 8.3 m
Outrigger Length 29 ft 8.8 m

PUMP SPECIFICATIONS

Standard-

2525H-6 120/85 MPS

U.S.

Metric

Theor. Concrete Output 213 cu yds/h 163 cu m/h
Max. Pressure on Concrete 1169 psi 80 bar
Max. Strokes Per Minute 22
Max. Aggregate size 2.5 in 63.5 mm
Material Cylinder Diameter 10 in 254 mm
Material Cylinder Stroke 98 in 2500 mm
Differential Cylinder Diameter 4.7 in 120 mm
Maximum Oil Flow 158.5 gal/min 600 l/min
Hydraulic Circuitry Type MPS
Valve Type B Rock

*Specifications are subject to change without prior notice.
