SPECIFICATIONS |
||
U.S. |
Metric |
|
| Vertical Reach | 187′ 9″ | 57.2 m |
| Horizontal Reach | 175′ 2″ | 53.4 m |
| Below Grade Reach w/ Tip Hose | 141′ 1″ | 43 m |
| Pipeline Diameter | 5 in | 125 mm |
| Boom Type/ Sections | Overhead Roll & Fold®/ 4 | |
| Boom Rotation | 380 degrees | |
| Unfolding Height | 56′ 5″ | 17.2 m |

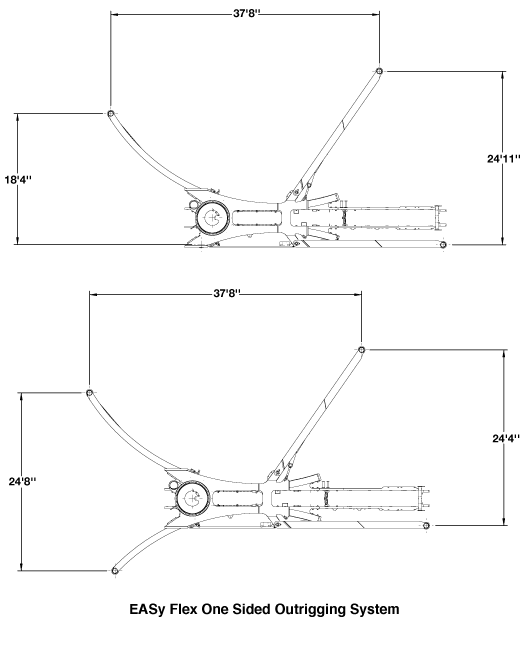

| Outrigger Type- Front | Super X, Hydraulic Extension & Jacking | |
| Outrigger Type- Rear | Hydraulic Slewing & Jacking | |
| Outrigger Soil Pressure w/o Dunnage (front/rear) | 760/739 psi | 52.4/51 bar |
| Outrigger Soil Pressure w/ Dunnage (front/rear) | 67/65 psi | 4.6/4.5 bar |
| Outrigger Width, Front | 29′ 2″ | 8.9 m |
| Outrigger Width, Rear | 41 ft | 12.5 m |
| Outrigger Length | 37′ 8″ | 11.5 m |
PUMP SPECIFICATIONS- 2525H-6 120-85 MPS |
||
U.S. |
Metric |
|
| Theor. Concrete Output | 213 cu yds/h | 163 cu m/h |
| Max. Pressure on Concrete | 1169 psi | 80 bar |
| Max. Strokes Per Minute | 22 | |
| Max. Aggregate size | 2.5 in | 63.5 mm |
| Material Cylinder Diameter | 10 in | 254 mm |
| Material Cylinder Stroke | 98 in | 2500 mm |
| Differential Cylinder Diameter | 4.7 in | 120 mm |
| Maximum Oil Flow | 158.5 gal/min | 600 l/min |
| Hydraulic Circuitry Type | MPS | |
| Valve Type | B Rock | |
*Specifications are subject to change without prior notice.
